Dive Into the New Age of Accelerated Analytics

B2900

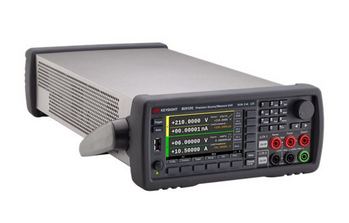

B2900 Series Precision Source/Measure Units (SMU)）

​

Outstanding Performance at an Affordable Price



​

Product Features:

High-Precision Power Output with High-Speed Measurement Capability

The Keysight B2900 Series Precision Source/Measure Units (SMUs) deliver outstanding performance and ease of use at an affordable price. These compact benchtop SMUs enable you to quickly perform a wide range of high-resolution and high-accuracy I-V (current-voltage) measurements. With an intuitive color LCD graphical interface, you can easily view measurement results without changing connections.

​

  • Accurately measure current and voltage using a single SMU instrument

  • Remotely control and perform measurements from a PC without programming

  • Display I-V curves and various graphical results directly on the front panel

  • 6.5-digit resolution for both sourcing and measurement

  • Measurement resolution down to 10 fA and 100 nV

  • Increase test efficiency while reducing overall cost of ownership

​

​

​

​

DataSheet   B2900

B2960

B2960 Series 6.5-Digit Low-Noise Power Source

​

Best-in-Class Precision Power Supply



​

Product Features:

Next-Generation Precision Power Source

The next-generation Keysight B2960 Series 6.5-digit low-noise power sources provide precise, wide bipolar output ranges along with innovative capabilities such as graphing and arbitrary waveform generation, enabling testing and evaluation that traditional power supplies cannot perform.

These features make the Keysight B2961B/B2962B low-noise power sources ideal companion instruments for oscilloscopes, network analyzers, spectrum analyzers, frequency counters, digital multimeters, and nanovoltmeters. The advanced capabilities of this solution enable researchers, electronics R&D engineers, and technicians to overcome challenging measurement tasks.

​

  • 6.5-digit accuracy with a wide bipolar four-quadrant output

  • Voltage range from 100 nV to 210 V, and current range from 10 fA to 3 A DC / 10.5 A pulse mode

  • Achieve 10 μVrms output noise (1 nVrms/√Hz at 10 kHz) using an external ultra-low-noise filter

  • 100 nV / 10 fA resolution for precise power sourcing

  • Accurate arbitrary waveform generation from 1 MHz to 10 kHz

  • View time-domain voltage and current directly on the front panel

​

​

​

​

DataSheet   B2690

PZ2100

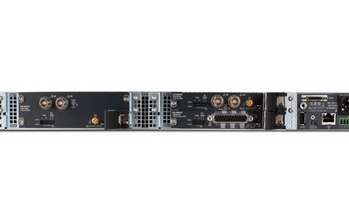

PZ2100 Series High-Channel-Density Precision SMU

​

All Your SMU Needs in Just 1U of Rack Space



​

Product Features:

All Your SMU Needs in Just 1U of Rack Space

Overcome a wide range of test and validation challenges with the PZ2100 Source/Measure Unit (SMU) solution. The system offers multiple SMU module options within a 1U rack space, supporting up to 20 SMU channels, allowing you to focus on device characterization instead of synchronization. With reduced programming requirements, simplified system integration, and application-specific measurement capabilities, the PZ2100 helps accelerate your time to market.

​

  • 5× higher channel density than traditional SMUs, delivering 20 channels in a 1U full-width rack

  • Five SMU module options plus an integrated pulse generator/digitizer for flexible expansion

  • Single-instrument solution with synchronization accuracy better than 50 ns across all 20 channels

  • Equipped with PathWave IV Curve measurement software for seamless operation and an enhanced user experience

  • User-friendly graphical interface to easily manage up to 20 channels simultaneously

  • Perform DC measurements down to 10 fA and pulse measurements up to 15 MSa/s

​

​

​

​

DataSheet   PZ2100

N6700

N6700 Series Modular System Power Supplies

​

Compact, Fast, and Flexible Modular Power Supplies



​

Product Features:

Size and Flexibility Matter in ATE Systems

Automated test equipment (ATE) systems often require more than one power supply. The Keysight N6700 Series modular system power supplies provide up to four outputs per mainframe. Each individual module powers one output, allowing you to customize voltage, current, and performance according to your requirements. You can mix and match up to four DC power supplies and electronic loads in a compact 1U mainframe.

​

  • Mainframes available in 400 W, 600 W, or 1,200 W

  • High-performance modules provide low noise, high accuracy, and programming speeds 10 to 50 times faster than other programmable power supplies

  • Precision modules offer accurate control and measurement in the milliamp and microamp ranges, with digitizing capabilities for voltage and current

  • Source/Measure Unit (SMU) modules support 2-quadrant or 4-quadrant operation, enabling precise current measurements down to the microamp and nanoamp levels

  • Electronic load modules provide highly accurate measurement systems and digitizing capabilities

  • Basic performance modules are ideal for general-purpose testing

​

​

​

​

DataSheet   N6700
