Dive Into the New Age of Accelerated Analytics

DAQ970A/973A

DAQ970A/DAQ973A Data Acquisition System

​

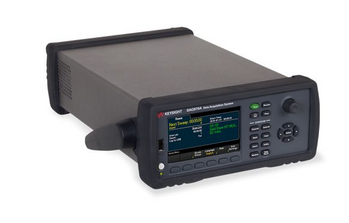

Keysight DAQ970A Data Acquisition System



​

Product Features :

Next-Generation Data Acquisition System

​The next-generation data acquisition (DAQ) system features a 3-slot mainframe and nine plug-in modules to choose from. You can interface with the DAQ using Keysight BenchVue DAQ software, which provides an intuitive graphical front panel and task-oriented menus with built-in guidance.

​

  • 3-slot mainframe with built-in 6½-digit digital multimeter

  • Nine switching and control plug-in modules

  • Measure and convert 12 different input signals, including:
    temperature (thermocouples, RTDs, and thermistors), DC/AC voltage, 2-wire and 4-wire resistance, frequency and period, DC/AC current, and capacitance

  • USB, LAN, or GPIB connectivity options for easy PC connection

  • Graphical web interface for simple click-to-monitor and control operation

  • USB flash drive support for copying/logging data in standalone applications

​

​

​

DataSheet   DAQ970A/DAQ973A

34980A

34980A Multifunction Switch/Measure Unit

​

Multifunction Switch/Measure Unit



​

Product Features :

  • 8-slot mainframe with 21 plug-in modules available

  • Built-in 6½-digit (22-bit) DMM for high-resolution measurements

  • Scanning rate up to 1,000 channels per second

  • Standard LAN, USB, and GPIB connectivity for PC connection, LXI compliant

  • Built-in web interface for easier remote access and control

  • Up to 40% lower cost than comparable VXI or PXI modular solutions on the market

  • A single mainframe can support up to 560 2-wire multiplexer channels or 4,096 matrix crosspoints

  • Instrument purchase now includes a BenchVue software license (BV0006B), making it easy to connect and control instruments and automate test sequences.

​

The Keysight 34980A is a flexible and reliable switching and data acquisition platform with more than 20 modules available, enabling you to quickly build a customized test system. It delivers up to 40% lower cost compared to comparable VXI or PXI modular solutions on the market.

  • Click the product demonstration link above to learn more and watch the Top 10 Switching/Measurement Tips demonstration video.

  • Click the “Options and Accessories” tab to select the appropriate modules for your 34980A.

  • Click here to learn how to develop a standardized core architecture, making it easier and more cost-effective to build and support functional test systems.

Keysight BenchVue DAQ control and analysis software is available for DAQ970A, 34970A, 34972A, and 34980A. BenchVue provides an intuitive interface that allows you to easily configure tests and view and analyze data in real time. You can quickly set up and run measurements, export or log data, view live measurement results through various display formats, and rapidly interpret your data.

BenchVue software also supports many other Keysight instruments, enabling you to control a wide range of popular Keysight instruments through a single interface.

For more information about attenuator/switch drivers, please visit the Attenuator/Switch Drivers page.











DataSheet   34980A
