E36100

E36100 Series Bench Power Supplies

​

Bench Power Supplies Designed for Low-Power Devices



​

Product Features:

Safely Power Low-Power Devices

The Keysight E36100 Series bench power supplies are the ideal choice for powering your low-power devices. They deliver clean power, enhanced device protection, and higher accuracy than conventional high-power supplies. With a compact form factor and wide viewing angle display, they are suitable for almost any bench application. The easy-to-use rotary knob with digit-by-digit control allows you to quickly and easily set the output to the exact resolution you need.

​

  • Five models available, offering up to 5 A current or 100 V voltage

  • Low output noise for sensitive devices — ripple and noise < 350 µVrms

  • Built-in overvoltage and overcurrent protection

  • Stable output with load regulation < 0.01%

  • 0.05% programming accuracy for precise measurement and control

  • High-contrast OLED display with wide viewing angle

  • Store and recall up to 10 complete power supply configurations

  • Compact design suitable for any bench-top application

  • USB and LAN (LXI Core) connectivity

​

​

​

​

DataSheet   E36100

E36150

E36150 Series Autoranging Bench Power Supplies

​

High-Power Testing with Exceptional Value



​

Product Features:

High Power, Safe and Easy to Use

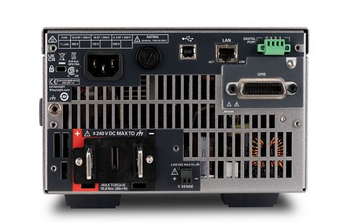

The Keysight E36150 Series autoranging bench DC power supplies are available in two models, each providing 800 W of output power per channel. The E36150 Series can deliver up to 60 V and 80 A, supplying ample power to your device under test (DUT) to meet demanding test requirements. It features a new removable front output terminal capable of handling up to 80 A, fully compliant with IEC 61010 safety standards.

The E36150 Series also offers advanced characterization and power simulation capabilities, including voltmeter and ammeter functions, data logging, Scope View, and an arbitrary waveform generator (AWG). With its high-performance capabilities, the E36150 Series can serve as a standalone solution, eliminating the need to operate multiple instruments simultaneously. This not only saves time but also reduces complex setup procedures.

The series also offers the following features:

​

  • Autoranging power supply capability to deliver higher current across all voltage levels

  • Peak power up to 3× the maximum rated power, ideal for handling startup surge conditions in electromechanical and high-capacitance DUTs

  • High-performance models provide precise output accuracy, ultra-low noise, and excellent load/line regulation

  • Comprehensive features including data logging, voltmeter and ammeter functions, adjustable slew rate, 4-wire remote sensing, LIST output programming, and digital control

  • Built-in overvoltage, overcurrent, and overtemperature protection to safeguard your devices

  • Fully leverage Keysight BV0003B PathWave BenchVue Power Supply Software and Test Flow automation, as well as Keysight BV9200B/BV9201B BenchVue Advanced Power Control and Analysis software

  • Optional upgrade to Keysight E36150ADVU to enable Scope View and AWG functions for advanced characterization and power simulation

  • Simplified connectivity with USB, LAN (LXI Core), and optional GPIB

​

​

​

DataSheet   E36150

E36200

E36200 Series Autoranging Power Supplies

​

Get More Available Power with Autoranging Power Supplies



​

Product Features:

Designed for High-Power Devices

The Keysight E36200 Series autoranging bench power supplies are designed to power devices that typically require higher output power and greater rated capacity. The single-output E36200 Series autoranging bench power supplies can power devices requiring up to 200 W. In comparison, the dual-output models provide two independent 200 W outputs, which can be combined into a single 400 W output.

Three technologies enable higher current at higher voltages: autoranging, auto-series, and auto-parallel. All four models feature autoranging outputs, allowing maximum current delivery at any voltage level. For dual-output models, auto-series and auto-parallel functions internally combine the outputs to deliver up to 400 W from a single output.

​

  • Autoranging power supply capability to deliver higher current across all voltage levels

  • Auto-parallel output providing up to 40 A current

  • Auto-series output delivering up to 120 V voltage

  • Adjustable slew rate to control inrush current

  • Built-in overvoltage, overcurrent, and overtemperature protection to safeguard devices

  • Low ripple and noise output < 350 µVrms

  • Improved load regulation using 4-wire remote sensing

  • Measure power over time using the built-in data logger

  • Simplified connectivity with USB, LAN (LXI Core), and optional GPIB

​

​

​

​

DataSheet   E36200

E36300

E36300 Series Triple-Output Power Supplies

​

Our Best-Selling Bench Power Supplies



​

Product Features:

Triple-Output Power Supplies – Low Noise and Fully Featured

The E36300 Series triple-output power supplies are designed to meet your bench application needs right out of the box. With low output ripple/noise and accurate voltage and current measurements, you can perform tests with confidence. Deliver clean and reliable power to multiple voltage rails and simultaneously monitor voltage and current across all outputs. Advanced features such as data logging, output sequencing, LIST mode, and output coupling are available for flexible testing applications.

​

  • Low output noise — ripple and noise < 350 μVrms

  • Accurate programming and readback accuracy < 0.04%

  • Excellent stability with 0.01% line and load regulation

  • Three isolated outputs, each independently configurable

  • 4-wire remote sensing for improved measurement accuracy

  • Built-in overvoltage and overcurrent protection

  • Connectivity interfaces: USB, LAN (LXI Core), and optional GPIB

​

​

​

​

DataSheet   E36300

E3630

E3630 Series Bench Power Supplies

​

Get Laboratory-Grade Accuracy with Linear Power Supplies



​

Product Features:

Clean and Stable Power up to 200 W

If your application requires higher power, the E3630 Series power supplies provide up to 200 W of output power per channel. These linear power supplies deliver the quality and reliability you can trust to meet the demanding requirements of R&D design verification, manufacturing test, and quality assurance (QA) validation.

​

  • Low-noise linear power supply

  • Excellent line and load regulation

  • Single output, available in 120 W or 200 W models

  • Wider voltage–current combinations with dual-range output

  • 4-wire remote sensing

  • Store and recall functions for enhanced operational safety

  • Reliable overvoltage and overcurrent protection

  • Flexible interfaces: RS-232 and GPIB

​

​

​

​

DataSheet   E3630

E3640

E3640 Series Bench Power Supplies

​

Get Dual-Range Performance – Two Power Supplies in One



​

Product Features:

More Voltage and Current Combinations with Dual-Range Capability

The E3640A Series bench power supplies provide 30 W to 100 W of output power along with the flexibility of dual-range operation. Each output offers high and low voltage ranges, with the low-voltage range allowing the power supply to deliver higher current. The E3640A Series is available in single-output and dual-output models. The tracking feature can be turned on or off, allowing the two outputs to operate independently or together.

​

  • Low output noise, with ripple and noise < 500 μVrms

  • Stable output, with load regulation < 0.01%

  • High measurement accuracy better than 0.05%

  • Flexible operation with the ability to store and recall up to 5 operating states

  • Bright and clear vacuum fluorescent display (VFD)

  • Available with one or two channels

  • Multiple connectivity options: RS-232 and GPIB

​

​

​

​

DataSheet   E3640

E36441A

E36441A Autoranging DC Power Supply

​

Versatile 400 W Power Supply with Four-Output Control and Seamless Connectivity



​

Product Features:

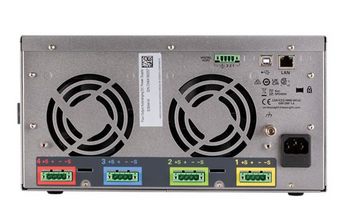

The Keysight Smart Bench Essentials Plus E36441A autoranging DC power supply delivers stable and fast-response power with up to 400 W total output, distributed across four output channels (up to 160 W / 32 V / 10 A per channel), effectively supporting hardware design verification and debugging tasks.

The instrument includes Output Sequencing and adjustable Slew Rate functions for specific application requirements. Its flexible four-channel configuration allows outputs to be connected in series up to 128 V or in parallel up to 40 A.

The E36441A provides low output noise and ripple, along with fast load transient response, ensuring a stable and reliable power source.

The E36441A helps you to:

​

  • Easily configure parameters using a 7-inch color display

  • Deliver 400 W output across four channels with low ripple and low noise

  • Achieve fast transient response to quickly handle dynamic load changes

  • Configure outputs in series up to 128 V or parallel up to 40 A

  • Utilize accurate programming and readback for precise voltage and current control

  • Adjust voltage and current easily with color-coded channels and dedicated knobs

  • Support 2-wire and 4-wire remote sensing to ensure accurate voltage regulation

  • Record data conveniently with the built-in data logger

​

​

​

​

DataSheet   E36441A

E36731A

E36731A Battery Emulator and Analyzer

​

Optimize Your IoT Device Power Efficiency with a Complete Battery Analysis and Emulation Solution



​

Product Features:

Design for Exceptional Battery Life

The Keysight E36731A Battery Emulator and Analyzer is an integrated electronic load and power supply that works together with Keysight PathWave BenchVue Battery Emulation Software. A simulated battery provides a reliable reference, enabling you to test devices at any charge level. Instantly emulate any battery state of charge and quickly evaluate how design or software changes affect battery life. By simulating batteries and performing precise current consumption analysis, you can significantly extend battery life or reduce device size.

​

  • Simulate the current consumption profile of a device battery to generate accurate battery characterization data

  • Instantly emulate any battery state of charge and display current consumption data

  • Perform accurate battery discharge testing by simulating device current consumption

  • Estimate battery aging effects to predict device performance throughout its lifecycle

  • Simplify workflows with the integrated power supply and electronic load

  • Create battery models for virtually any battery type

  • Deliver up to 200 W, 30 V, and 20 A of power

​

​

​

​

DataSheet   E36731A
