Dive Into the New Age of Accelerated Analytics

N5171B

N5171B EXG X-Series RF Analog Signal Generator,

9 kHz to 6 GHz

​

The N5171B delivers faster manufacturing test speed and longer uptime at a cost-effective price.

Product Features:

Cost-Effective Signal Generator Optimized for Manufacturing Test

  • Achieve faster test speeds and longer uptime

  • Use industry-leading output power to perform basic component parametric testing and receiver functional verification

  • Simulate complex analog modulation scenarios using versatile generator capabilities to thoroughly verify receiver performance

  • Self-maintenance solutions and low repair costs help minimize instrument downtime and reduce overall operating costs

Powerful hardware performance delivers maximum manufacturing test efficiency

  • Excellent accuracy and repeatability enable confident component testing

  • Compensate for test system losses with industry-leading output power

  • Fast switching speed significantly improves productivity

  • Compact 2U form factor reduces rack space requirements

  • Purchase the performance and features you need today, with the flexibility to upgrade easily as future requirements evolve

Low total cost of ownership maximizes resource efficiency.

  • Built on the proven technology of the first-generation MXG, with a longer MTBF (mean time between failures) to significantly increase uptime.

  • Self-maintenance strategies and low repair costs help reduce instrument downtime and lower associated operating costs.

​

​​

​

​​DataSheet   N5171B

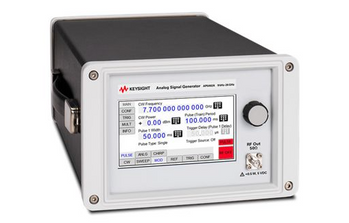

AP5001A

AP5001A Analog Signal Generator,

9 kHz to 6.1 GHz

​

Portable Pure Analog Signal Generator for RF Characterization

Product Features:

RF Device Characterization and Stress Testing

Whether used in the laboratory or on the go, the Keysight AP5001A analog signal generator delivers a high-quality signal source. This instrument is lightweight, portable, and space-saving, without compromising on quality, functionality, or performance.

​

  • Precisely adjust output power from –120 dBm to +17 dBm to support a wide range of RF applications

  • Ensure measurement accuracy with OCXO-stabilized signals (phase noise of –130 dBc/Hz at 1 GHz, 20 kHz offset) and mHz resolution

  • Fast switching speed (as low as 20 µs) accelerates testing and improves efficiency

  • Extensive modulation capabilities including AM, FM, PM, pulse modulation, pulse sequencing, and linear frequency sweep (chirp)

  • Optimized user interface with LCD touchscreen and remote desktop software for smooth operation

  • Upgradeable licensing options to easily adapt to future requirements

​

​​

​

​​DataSheet   AP5001A

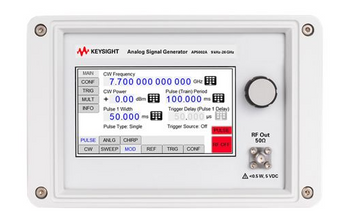

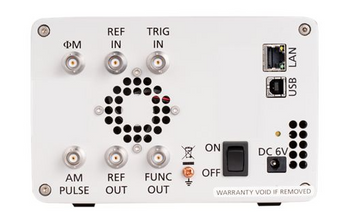

AP5002A

AP5002A Analog Signal Generator,

9 kHz to 26 GHz

​

Portable Pure Analog RF Characterization Signal Generator

Product Features:

RF Device Characterization and Stress Testing

The Keysight AP5002A analog signal generator is a compact yet powerful test instrument that serves as an RF and microwave signal source, providing unprecedented convenience for your measurement needs.

​

  • Precisely adjust output power from –120 dBm to +23 dBm to support RF and microwave applications

  • Ensure measurement accuracy with OCXO-stabilized signals (phase noise of –130 dBc/Hz at 1 GHz, 20 kHz offset) and mHz resolution

  • Fast switching speed accelerates testing and improves efficiency

  • Extensive modulation capabilities including AM, FM, PM, pulse modulation, pulse sequencing, and linear frequency sweep (chirp)

  • Optimized user interface with LCD touchscreen and remote desktop software for smooth and intuitive operation

  • Upgradeable licenses allow expansion to higher frequencies and additional options as future needs evolve

​

​​

​

​​DataSheet   AP5002A

N5166B

N5166B CXG RF Vector Signal Generator,

9 kHz to 6 GHz

​

Generate Essential Signals for IoT and General-Purpose Devices

Product Features:

Designed for Developing and Testing IoT and General-Purpose Devices

​

  • Covers a frequency range from 9 kHz to 3 or 6 GHz, with up to 120 MHz RF modulation bandwidth

  • Perform basic parametric testing of components and verify receiver functionality

  • Fully test your devices using a wide range of proven, standards-compliant vector signals

  • Easily debug wireless communication system components with a reliable vector signal generator

  • Reduce repair costs and minimize instrument downtime with self-maintenance solutions

​

​​

​

​​DataSheet   N5166B

N5181B

N5181B MXG X-Series RF Analog Signal Generator,

9 kHz to 6 GHz

​

The Keysight N5181B MXG X-Series RF analog high-performance signal generator is optimized as a standard transmitter for R&D applications, offering a frequency range from 9 kHz to 6 GHz.

Product Features:

Validate Your Designs at and Beyond the Limits

​

  • Generate the signals you need with outstanding hardware performance, delivering unmatched phase noise and spurious performance

  • Drive power amplifiers and perform nonlinear behavior characterization with industry-leading output power

  • Simulate complex analog modulation scenarios using versatile signal generation capabilities to fully evaluate receiver performance

  • Reduce total cost of ownership with a three-year calibration cycle and comprehensive self-maintenance solutions

​

​​DataSheet   N5181B
